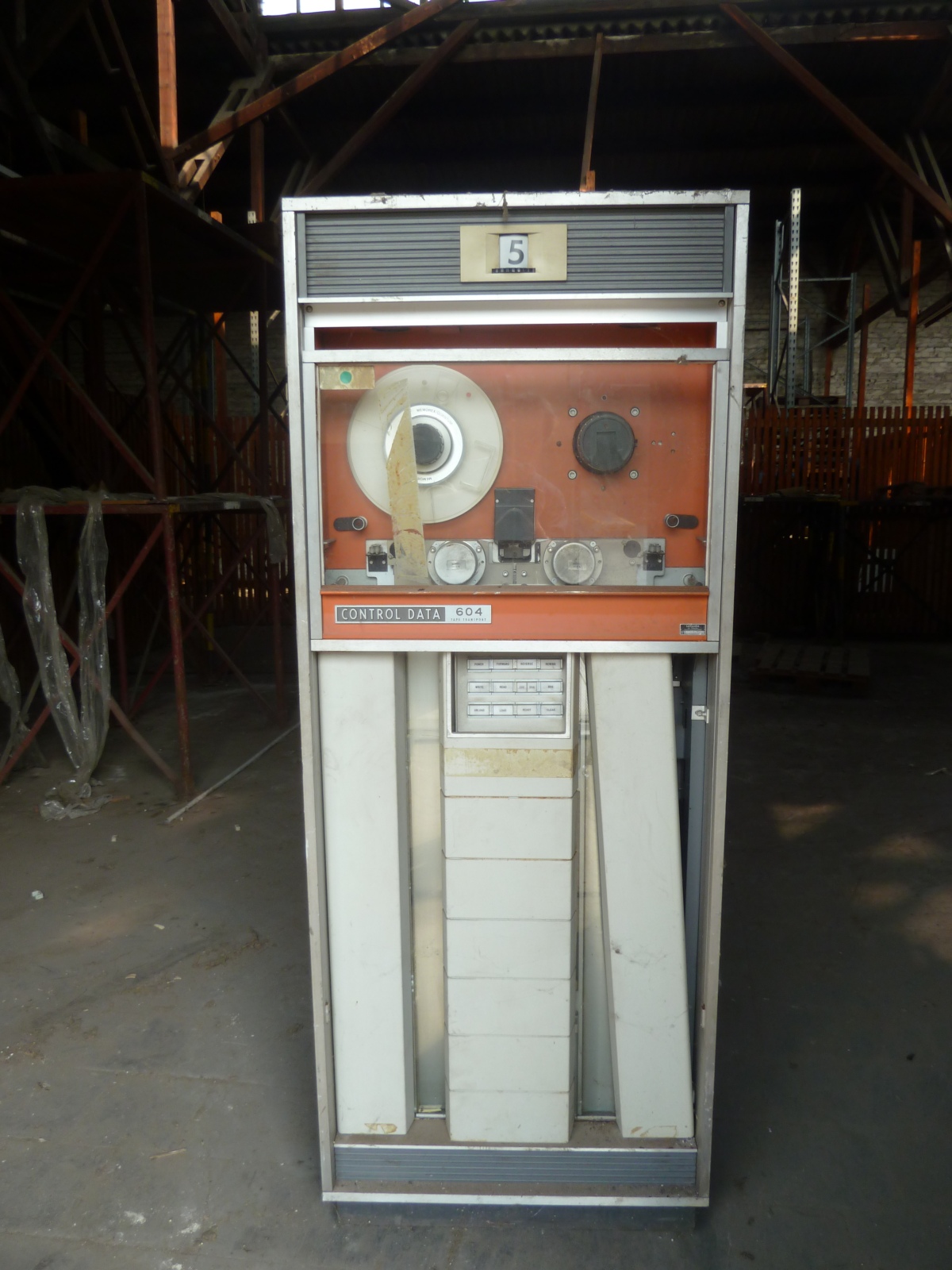

Date of introduction: 1962
Type: Reel-to-Reel Tape Drive
Recording Tracks: 7 (Data: 6bit, Parity: 1bit)
Recording Types: NRZ1 (Non-Return to Zero - change on Ones)
Recording Densities: 200, 556, 800 frames per inch
Tape Speed: 75 inches per second
Power requirements: 208V, 60Hz, three-phase, 15amps
Dimensions: Height: 183cm (72"), Width: 71cm (28"), Depth: 89cm (35")
Weight: 544kg (1200pounds)
To be described
The tape drive is awaiting restauration. It definitely lacks all
logic boards :( Otherwise, nothing obvious seems to be missing. How
can help me out with technical manuals of the drive to figure out a
list of missing boards. Hints on where to obtain spare boards would be
great! Any contact regarding this is greatly appreciated!
| |
||
|---|---|---|
 |
To

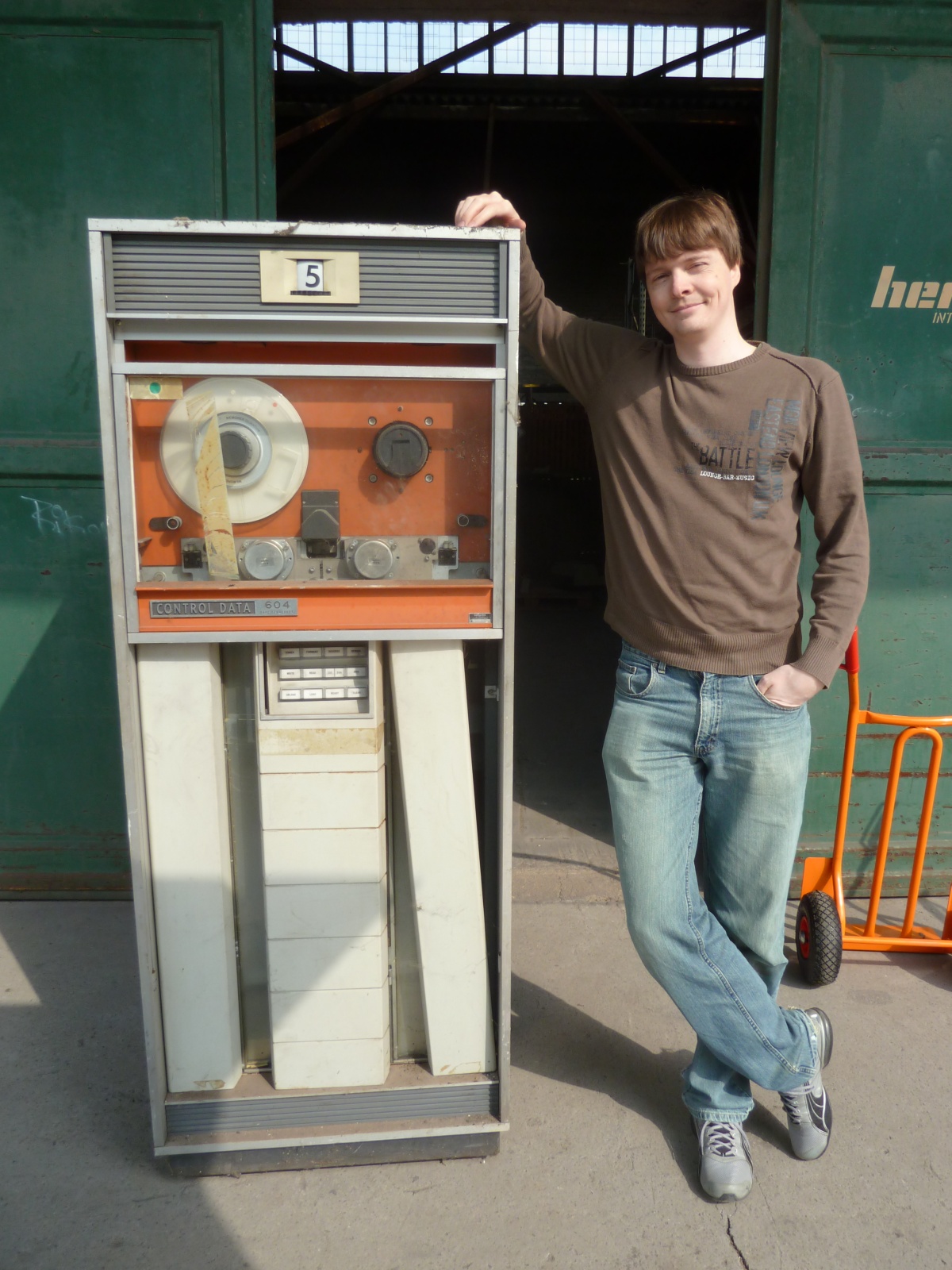

get a feeling for the serious sizes of the drive, my friend
Patrick posed next to it in this picture. |
|

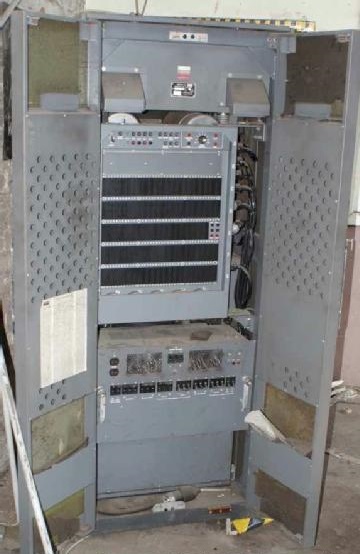

| The rear view of the drive with opened rear doors. The black logic backplane is well distinguishable, as all logic boards were taken out. Below the tape logic is located the power supply which is mounted on slides for better accessibility during service. |
 |
|
 |

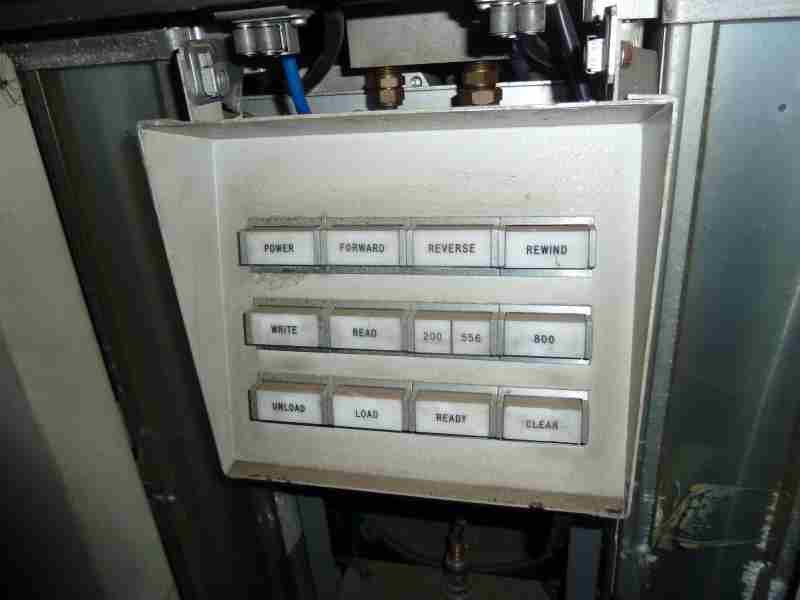

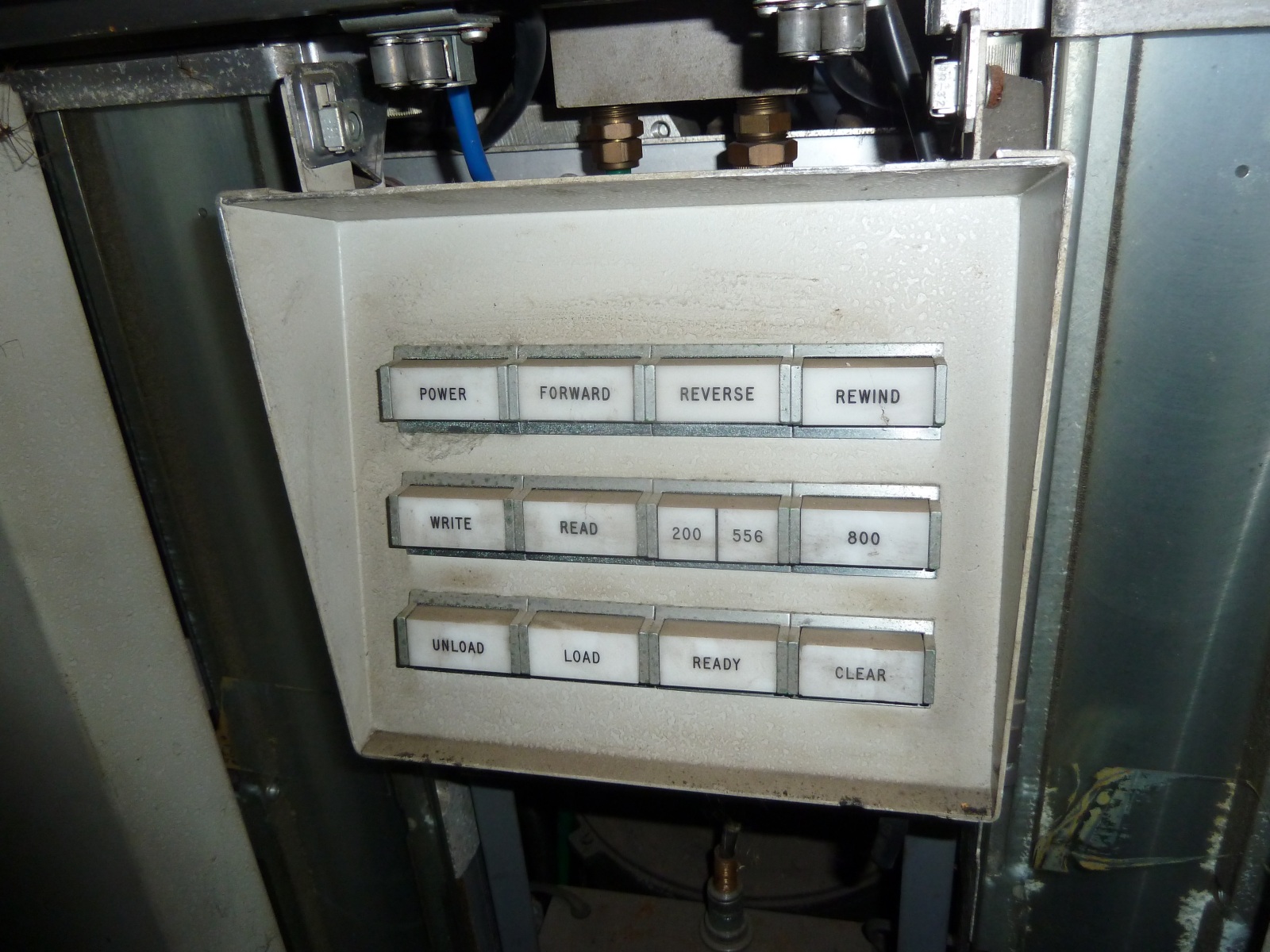

Front operator control panel of the tape drive. | |

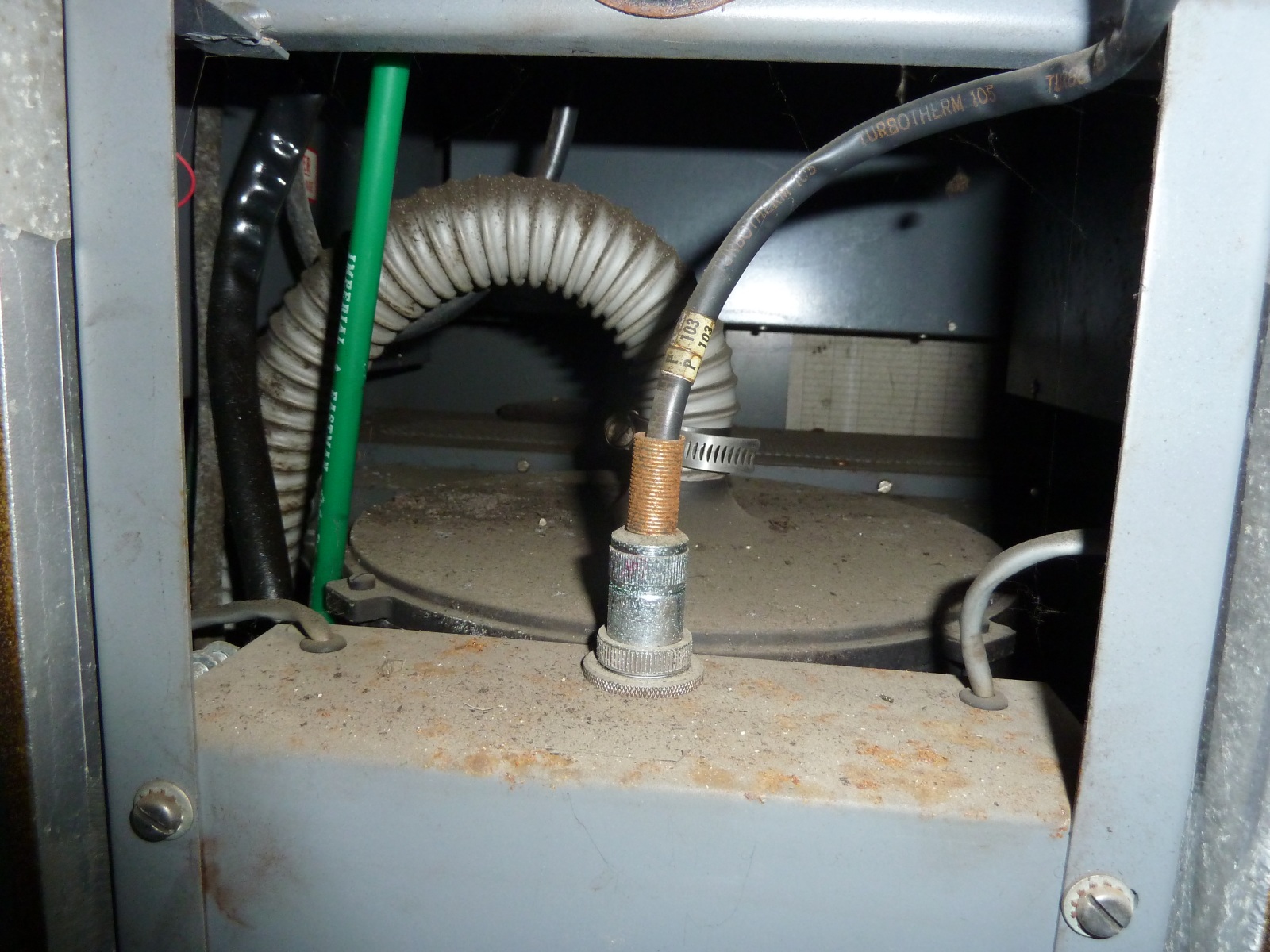

| This is very likely the vacuum pump of the drive. |
 |
|
|

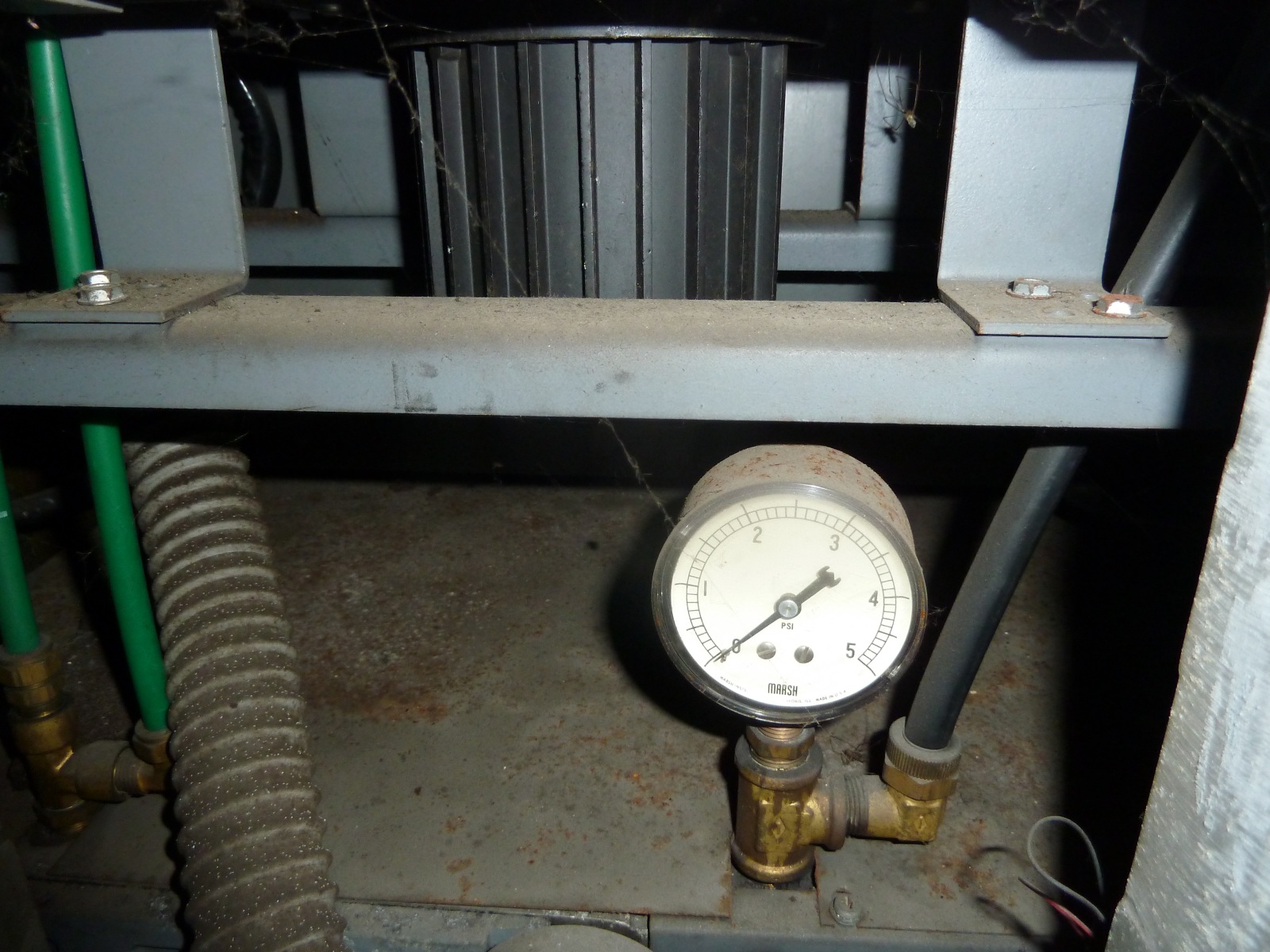

Pressure
gauge. |
|
